Project
FRP Storage Tanks for a biorefinery
- CustomerBiorefinery in Scandinavia
- LocationNorway
- Project executed2021
- 400 m3 Storage TankDiameter: 7,000 mm, Height: 11,800 mm
- 1,000 m3 Storage TankDiameter: 9,000 mm, Height: 17,600 mm
- 2,000 m3 Storage TankDiameter: 12,600 mm, Height: 18,600 mm
- MediumSodium Hypochlorite (NaOCl), Hydrochloric Acid (HCl)
- TemperatureDesign: + 60° C
-
Market segmentChemical Industry
Plasticon Composites International Contracting B.V. designed and supplied 3 storage tanks for chemical storage at the biorefinery in Norway.
1 tank has a volume of 1.000 M3 for storage of HCl, has a diameter of 9,1 mtr and an overall height of 17,5 mtr. The second tank has a volume of 400 M3 for storage of NaOCl, a diameter of 7,0 mtr and an overall height of 11,8 mtr.

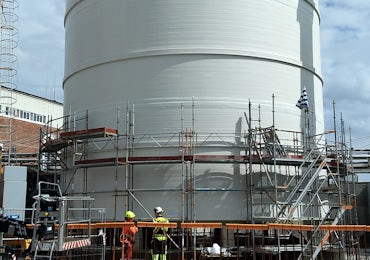

The third tank was produced by Plasticon Projects in segments and shipped to Norway. These sections have been assembled on-site at the facility. The final tank has a volume of 2,000 m3, a diameter of 12.6 mtr and an overall height of 18,6 mtr.
